This is another installment in the series of articles about the notable changes in CIDER 2.0. Today’s topic is one of those “ambitious ideas that lay dormant for ages” I keep mentioning: proper interactive macro stepping.

The Dream

CIDER has had macroexpansion support practically forever - C-c C-m expands the form before point into a dedicated buffer, a feature we inherited spiritually from SLIME. It works, but it has always felt a bit… detached. The expansion lives in another buffer, divorced from the code you’re reading, and for deeply nested macros you end up bouncing between buffers trying to keep your bearings.

Emacs Lisp hackers have long had something nicer: macrostep, a brilliant little package that expands macros in place - right where they sit in your code - one step at a time, and collapses them back when you’re done. I’ve wanted a Clojure version of this for years. CIDER 2.0 finally ships one.

Standing on shoulders, not on top of them

I’m hardly the first person to want this. The idea of bridging CIDER and macrostep goes back to at least 2016, where a proof of concept wired up macrostep’s extension hooks to CIDER by injecting a couple of helper functions into your REPL and shuttling forms back and forth as strings. Later, macrostep-geiser - a Scheme-oriented macrostep backend - grew CIDER support as well, and SLIME itself ships a slime-macrostep contrib built on the same extension API. So the hooks were there, the hacks existed, and I could have blessed one of them and called it a day.

I opted for a clean, from-scratch implementation in CIDER instead - mostly to provide the best possible experience for Clojure programmers, without the compromises the bridges had to make. macrostep’s extension API was designed around Emacs Lisp’s happy circumstances, and Clojure violates most of them:

  • macrostep-expand-1-function must be synchronous. That’s fine when expansion is an elisp function call; it’s less fine when it’s a network round-trip to an nREPL server. (CIDER has been busy removing exactly this kind of blocking call lately - asynchronous eldoc being the poster child.)
  • The API traffics in forms - elisp data structures. But Clojure code isn’t elisp data: keywords, reader tags, #() lambdas and namespaced maps have no faithful elisp representation, so every bridge ends up round-tripping code through strings and hoping the quoting survives. The 2016 proof of concept literally did (format "(expand-once '%s)" form), which should make anyone a little nervous.
  • macrostep-print-function expects the client to print and fontify the expansion. In CIDER the server does the printing - that’s how we get namespace tidying (when instead of clojure.core/when), print-option handling and metadata display for free. A client-side printer would have to reimplement all of that, badly.

There’s also a less technical reason: lately I’ve grown rather averse to adding third-party dependencies to CIDER. A dependency is a bet on someone else’s continued enthusiasm, and such bets sometimes go bad - tellingly, macrostep itself spent a stretch unmaintained and now lives in a GitHub org literally named “emacsorphanage” (it has since found a new maintainer, but the point stands). CIDER is 14 years old and intends to stick around; over that kind of horizon, owning ~600 lines of overlay code is cheaper than adopting someone else’s semi-abandoned package. So we kept macrostep’s brilliant UX ideas and its familiar keybindings, and left the coupling behind.

cider-macrostep

The entry point is cider-macrostep-expand (C-c M-m e). Put point after a macro form, invoke it, and the form is replaced inline with its one-step expansion, highlighted so you can tell what’s expansion and what’s your code:

(when-let [x (fetch-thing)]
  (process x))

;; C-c M-m e =>

(let [temp__5825__auto__ (fetch-thing)]
  (when temp__5825__auto__
    (let [x temp__5825__auto__]
      (process x))))

From there you’re in cider-macrostep-mode, where the further-expandable sub-forms are underlined, n/p hop between them, e (or RET) steps into one, and c/q collapse one level or everything back to the original code. Your buffer is never actually modified in a way that sticks - collapse everything and it’s exactly as it was.

Here’s how that looks in practice - note the header line with the key hints, the highlighted expansion and the underlined sub-forms you can step into:

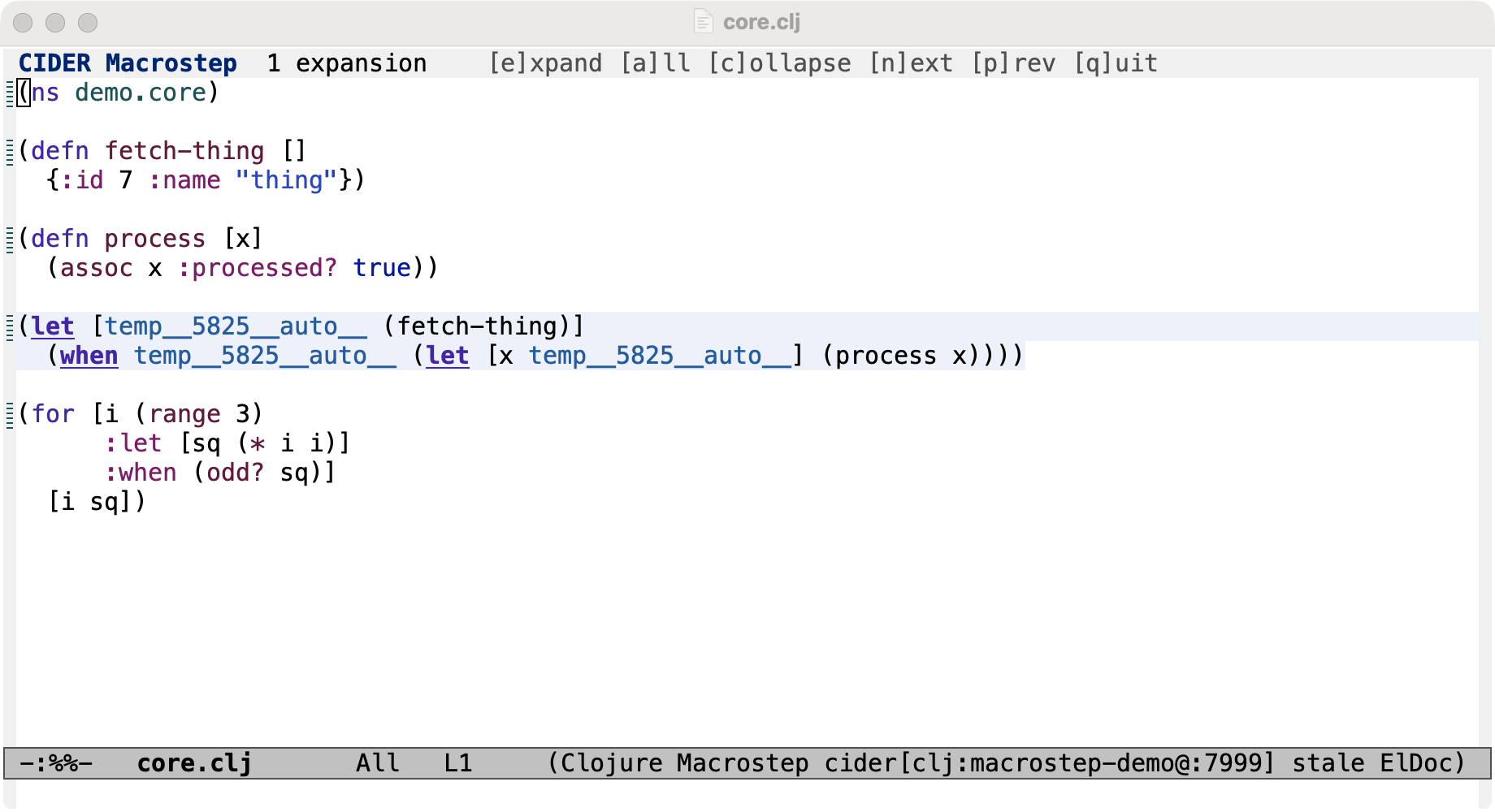

cider-macrostep expanding when-let inline

A couple of touches I’m particularly fond of:

  • Every distinct gensym in the expansion gets its own color, so you can finally track where that temp__5825__auto__ flows through the expanded code. Once you’ve seen a for expansion with colorized gensyms, you won’t want to go back:

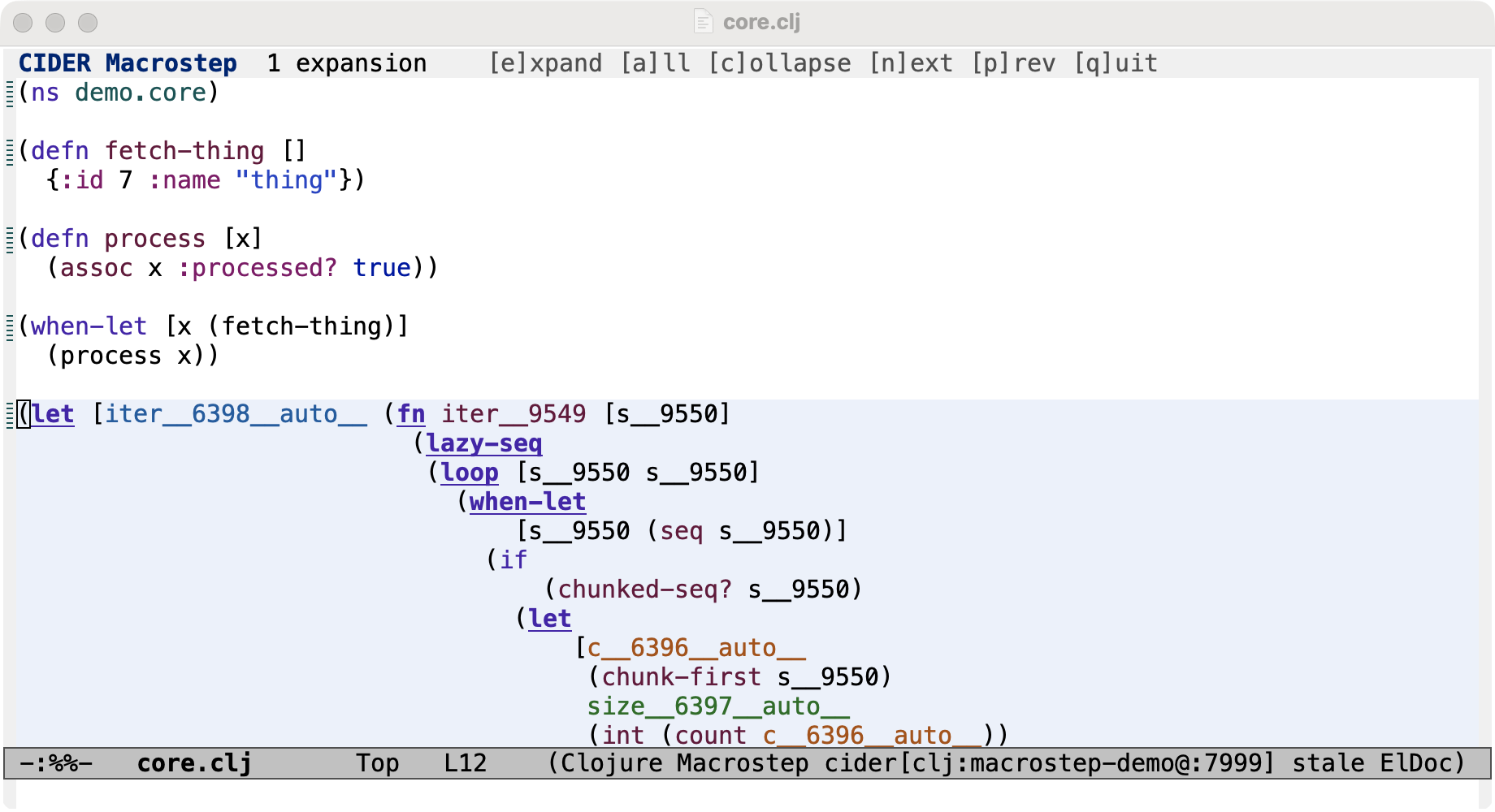

cider-macrostep expanding for, with colorized gensyms

  • E (cider-macrostep-expand-all) fully expands the form in one step, for when you don’t care about the journey.
  • b (cider-macrostep-expand-in-buffer) runs the same stepping session in a dedicated popup, leaving the source buffer untouched - handy when you’re in someone else’s code and feel uneasy about inline rewrites, however temporary.

The classic buffer got some love too

The traditional macroexpansion buffer wasn’t neglected either: it grew a header line showing the active expander and display options, n and t cycle namespace display and metadata in place, g re-expands with the latest macro definition, and freshly expanded forms pulse briefly so your eye lands in the right place.

The expansion commands also got more talkative: pointing them at an unresolved symbol now tells you whether the namespace simply isn’t loaded yet (evaluate the buffer!) or you’ve got a typo, instead of silently doing nothing.1

Why bother?

Macros are the part of Clojure people are most likely to describe as “magic”, and the standard advice - “just macroexpand it” - has always carried a hidden tax: the expansion of any non-trivial macro is a wall of gensyms and nested let*s that’s genuinely hard to read cold. Stepping through the expansion one level at a time, in place, with the gensyms color-coded, turns that wall into something you can actually follow. I did not expect macro debugging to become fun, and yet here we are.

All the details are in the macroexpansion docs. Give it a try the next time a macro surprises you - and keep hacking!

  1. Amusingly, we initially overdid these diagnostics - the guard refused to expand let and fn (which are macros wearing special-form badges) and broke a beloved trick of using macroexpansion to normalize reader syntax like ::auto/keywords. See #4111 - fixed right after 2.0. Even diagnostics need diagnostics. ↩
